# Page Content

Elementor Core Advanced

The page content is an array of objects which holds all the elements on the page. This field is recursive, meaning that it can hold nested elements, one inside the other. A container element can contain other containers and widgets, and nested widgets can contain other widgets.

# JSON Structure

If the page has no content, the content is an empty array:

{
	"title": "Template Title",
	"type": "page",
	"version": "0.4",
	"page_settings": [],
	"content": []
}
1
2
3
4
5
6
7

If the page has content, the content contains a list of objects:

{
	"title": "Template Title",
	"type": "page",
	"version": "0.4",
	"page_settings": [],
	"content": [
		{
			"id": "6af611eb",
			"elType": "container",
			"isInner": false,
			"settings": [],
			"elements": []
		}
	]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

# Page Elements

Elements are simple objects containing element data. Some elements can have nested elements inside of them, others don't.

This is important as in the past Elementor had a strict data structure - the traditional structure. The page had "section" elements, sections had nested "column" elements, and the columns had "widget" elements.

With the introduction of containers, Elementor replaced the traditional data structure with a modern structure, allowing the user to nest multiple elements one inside the other.

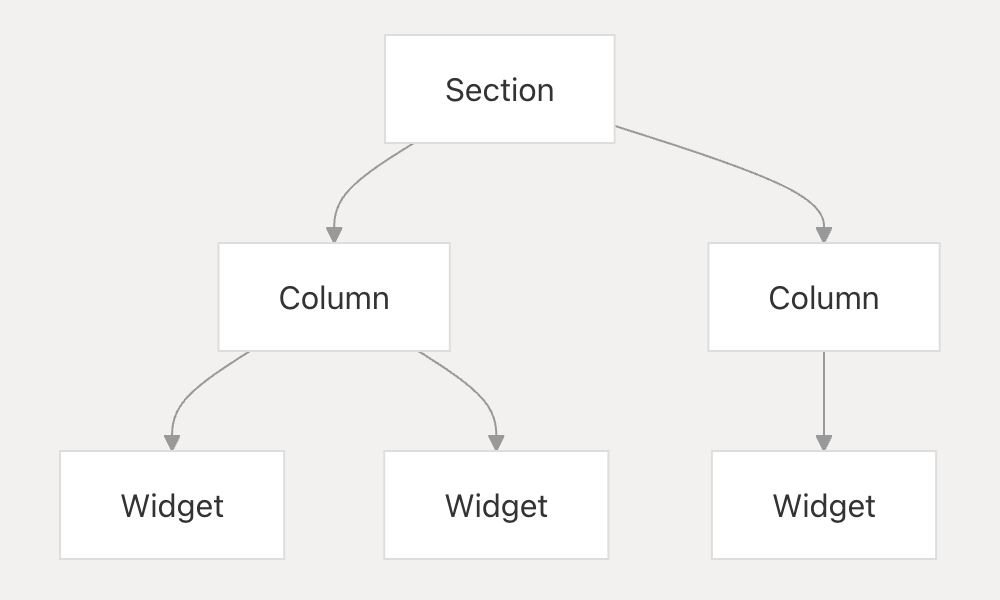

Traditional structure:

Traditional structure

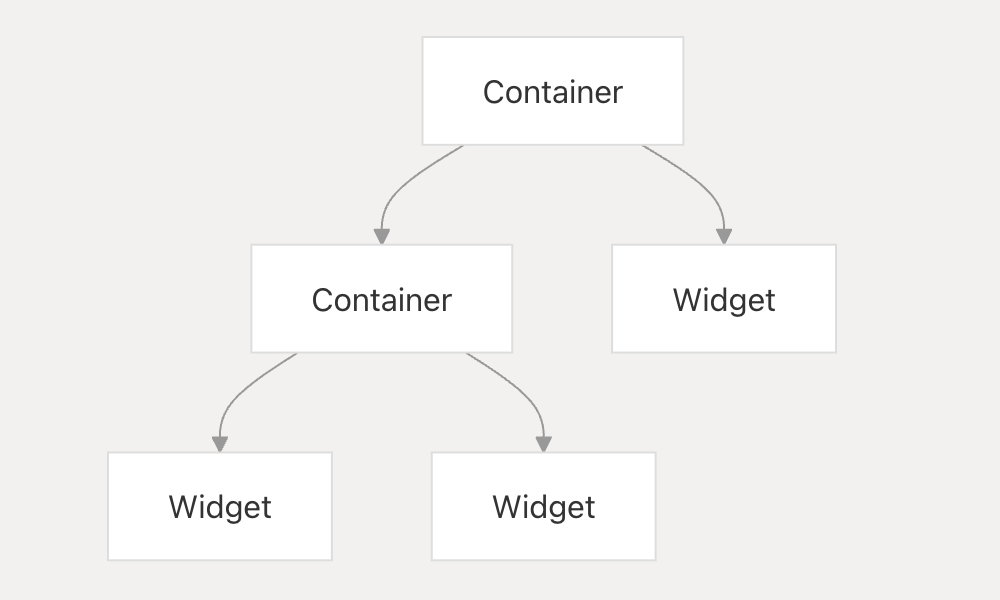

Modern structure:

Modern structure

With the adoption of nested layout elements, Elementor introduced widgets with nested capabilities. Widgets like the nested "Tabs", nested "Accordion", nested "Carousel", and nested "Menu" (mega menu).

# Examples

# A Page with a Section and a Column

An example of a page that uses the traditional section-column-widget structure:

{
	"title": "Sample Page",
	"type": "page",
	"version": "0.4",
	"page_settings": [],
	"content": [
		{
			"id": "123ab956",
			"elType": "section",
			"isInner": false,
			"settings": [],
			"elements": [
				{
					"id": "1d4a679a",
					"elType": "column",
					"isInner": false,
					"settings": [],
					"elements": [
						{
							"id": "1d4a679a",
							"elType": "widget",
							"widgetType": "image",
							"isInner": false,
							"settings": [],
							"elements": []
						}
					]
				}
			]
		}
	]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

# A Page with a Container

An example of a page that has two empty containers:

{
	"title": "Sample Page",
	"type": "page",
	"version": "0.4",
	"page_settings": [],
	"content": [
		{
			"id": "6af611eb",
			"elType": "container",
			"isInner": false,
			"settings": [],
			"elements": []
		},
		{
			"id": "7fb170b9",
			"elType": "container",
			"isInner": false,
			"settings": [],
			"elements": []
		}
	]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

# A Page with Nested Containers

An example of a page that has a container element with several nested containers:

{
	"title": "Test Page",
	"type": "page",
	"version": "0.4",
	"page_settings": [],
	"content": [
		{
			"id": "458aabdc",
			"elType": "container",
			"isInner": false,
			"settings": [],
			"elements": [
				{
					"id": "46ef0576",
					"elType": "container",
					"isInner": false,
					"settings": [],
					"elements": [
						{
							"id": "4a59f2e3",
							"elType": "container",
							"isInner": false,
							"settings": [],
							"elements": []
						}
					]
				}
			]
		}
	]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# A Page with a few Widgets

An example of a page that has a container element with three nested widgets:

{
	"title": "About Page",
	"type": "page",
	"version": "0.4",
	"page_settings": [],
	"content": [
		{
			"id": "6af611eb",
			"elType": "container",
			"isInner": false,
			"settings": [],
			"elements": [
				{
					"id": "6a637978",
					"elType": "widget",
					"widgetType": "heading",
					"isInner": false,
					"settings": {
						"title": "Add Your Heading Text Here",
						"align": "center"
					},
					"elements": []
				},
				{
					"id": "687dba89",
					"elType": "widget",
					"widgetType": "image",
					"isInner": false,
					"settings": {
						"_padding": {
							"unit": "px",
							"top": "100",
							"right": "0",
							"bottom": "100",
							"left": "0",
							"isLinked": false
						}
					},
					"elements": []
				},
				{
					"id": "6f58bb5",
					"elType": "widget",
					"widgetType": "button",
					"isInner": false,
					"settings": {
						"text": "Click Me",
						"button_text_color": "#000000",
						"background_color": "#E7DFF5"
					},
					"elements": []
				}
			]
		}
	]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
